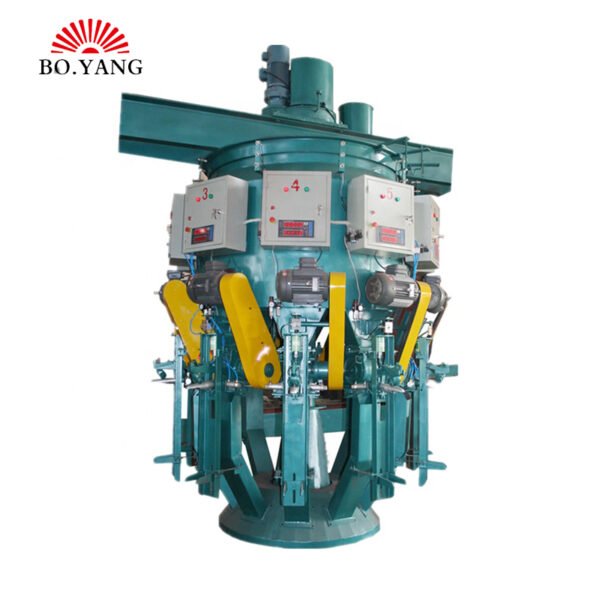

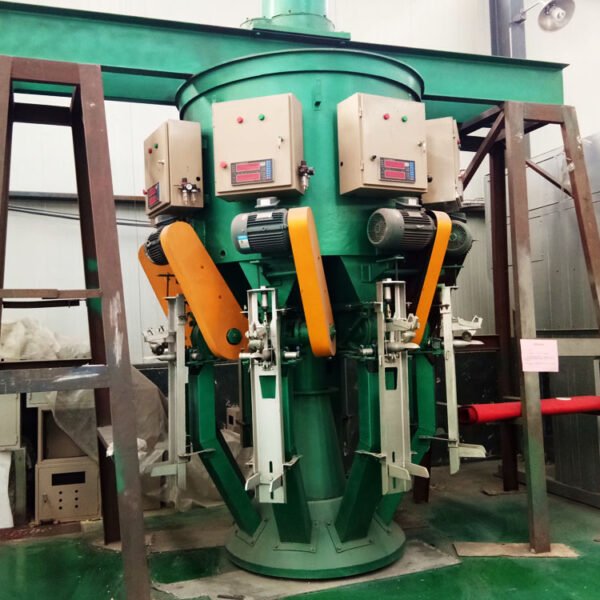

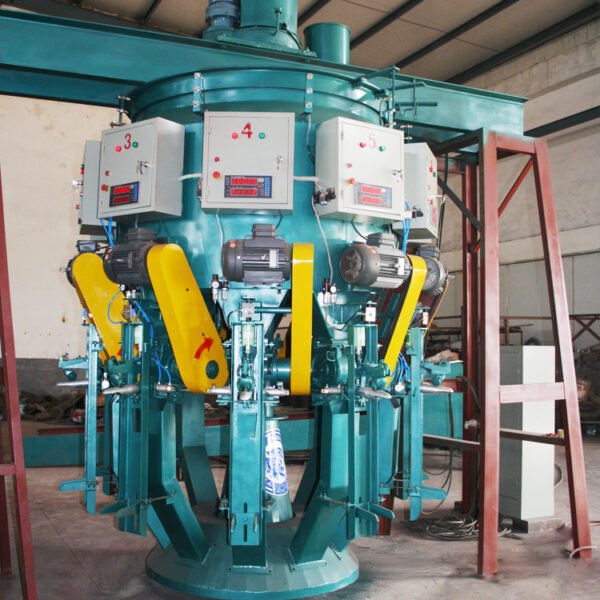

BX series rotary cement packing machine, is the new product developed in the late nineties by our company. It has a big innovation in Mechanical and electrical control and testing weighing. It’s novel design and unique institution has filled the gap that rotary cement packing machine has no air driving part in China. It’s in a leading position among similar products.
The BX series rotary cement packing machine include models of six nozzles,eight nozzles,ten nozzles,twelve nozzles,fourteen nozzles and we can design other models according to the requirement of user.
| Driven Type | Electric |
|---|---|
| Capacity | 15t/H Per Nozzle |
| Certificate | CE,ISO |
| Material | Stainless Steel 304/316 |
| Filling material | Powder |
| OEM | Accept |
Technical data
|
NO. |
Technical specification |
Unit |
Type |
||||||||
|
BX-6 |
BX-8 |
BX-10 |
BX-12 |
||||||||
|
Value |
|||||||||||
|
1 |
Feeding Outlet |
Nozzle qty |
6 |
8 |
10 |
12 |
|||||
|
2 |
Capacity |
t/h |
60-80 |
80-110 |
110-130 |
120-150 |
|||||
|
3 |
Weighing Accuracy |
Weigh per bag |
Kg |
50 ±0.5 |
|||||||
|
Pass rate |
% |
≥95 |
|||||||||
|
Total Weight (20 bags) |
kg |
≥1000 |
|||||||||
|
4 |
Outside diameter of rotary tube |
mm |
Φ1480 |
Φ1580 |
Φ1750 |
Φ2090 |
|||||
|
5 |
Max. revolving diameter |
mm |
Φ2300 |
Φ2400 |
Φ2600 |
Φ2940 |
|||||
|
6 |
Outlet height from the floor |
mm |
1350 |
||||||||
|
7 |
Rotation speed of tube |
r/min |
0.45-4.5 |
0.45-4.0 |
0.45-3.5 |
||||||
|
8 |
Rotation direction |
Overlook |
Clockwise |
||||||||
Technical Features:
1. Accurate weighing, stable performance, easy operation
2. good sealing, reasonable structure, long service life;
3. Small size, light weight, easy maintenance and adjustment
4. Mechatronics, save energy. Through the principle of lever linkage of mechanical, electrical and gas to get the automatic functions of bag pressing and releasing and other functions;
5. Widely used. It is not only used for packing cement, but other powder and granular materials wigh good fluidity.
