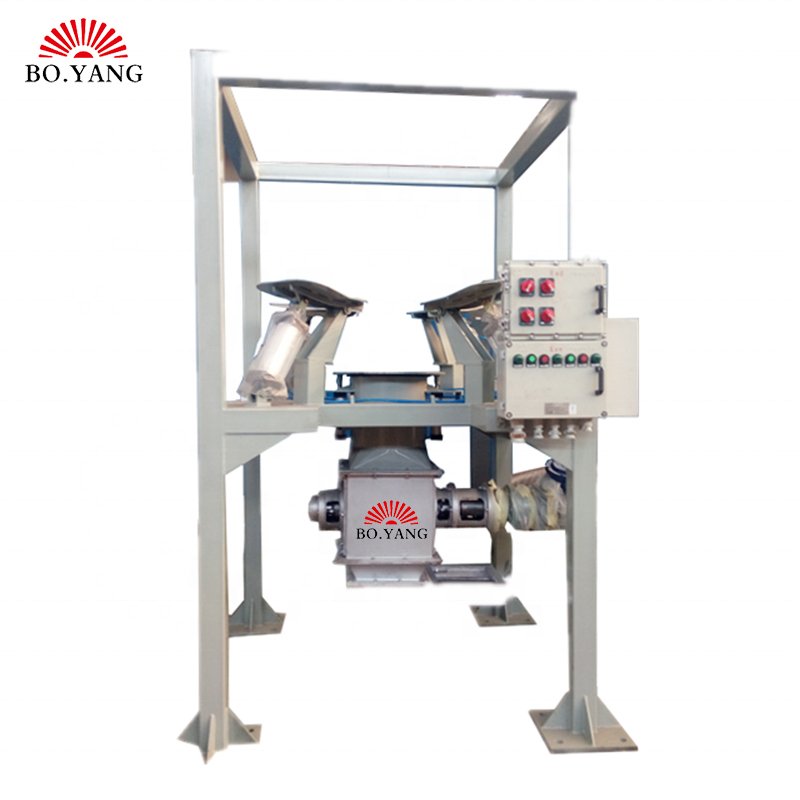

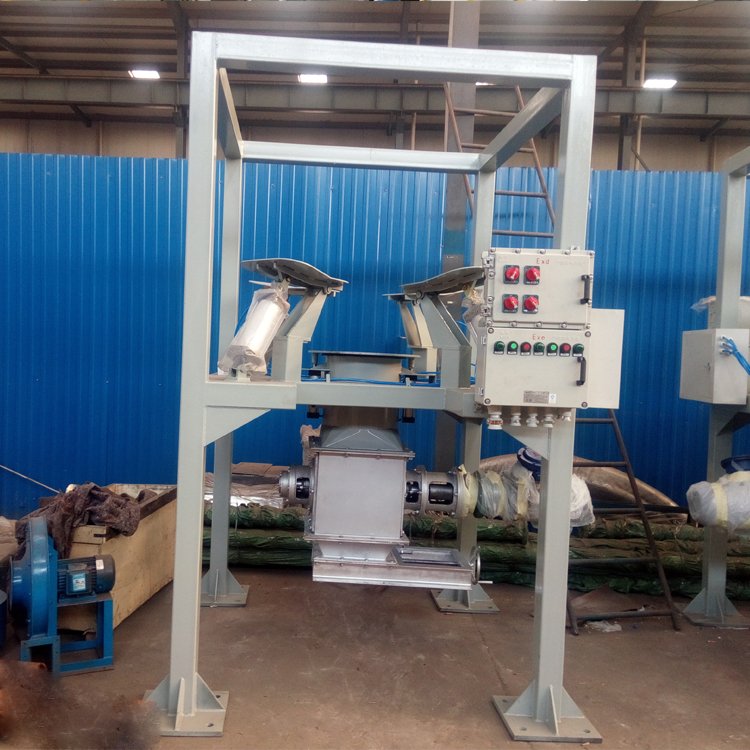

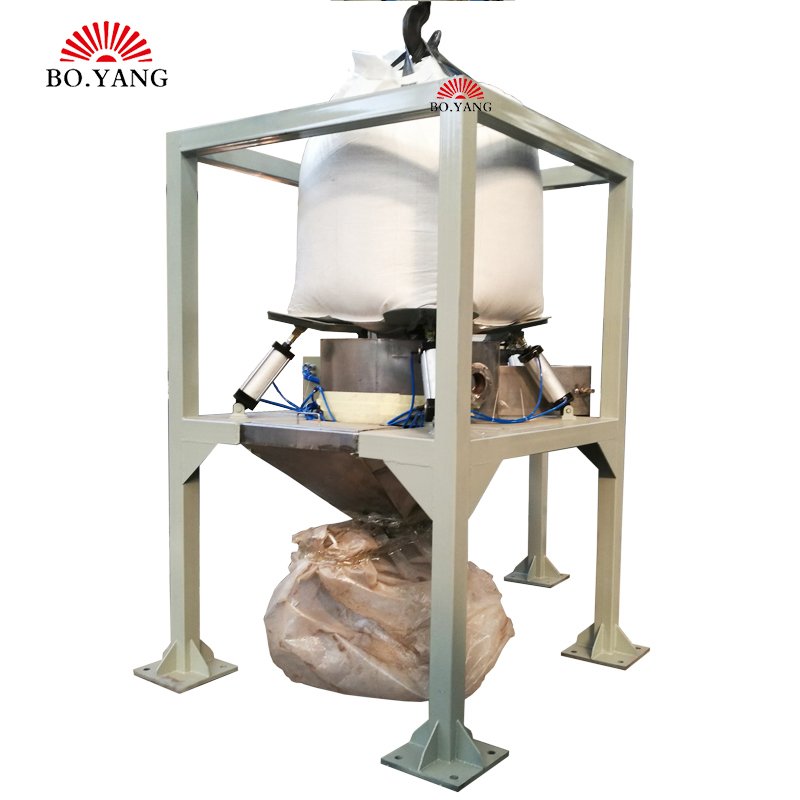

Ton-bag breaker is mainly applied to the powder material of 500KG-2500KG bag’s unloading. It is widely used in industries of chemicals, plastics, sewage treatment, infrastructure and other industries.
Ton- bag breaker charter not only effectively protect the production environment, reduce the intensity of workers, improve production efficiency, but also solve the problems of the material is easy block due to moisture absorption and the problem of material is difficult to be discharged.
| Capacity | 10-20 bags/h |
|---|---|
| Material | Stainless Steel |
| Power | 380v/50hz/3ph |
| Certification | CE ISO |
| OEM | Accept |
|
Bag size for cutting
|
1000x1000x1600
|
|
Working Power
|
AC 380 v ± 5%50 Hz
|
|
Air source pressure
|
≥ 0.6MPa
|
|
Air consumption
|
≤ 0.6 m ³/min
|
|
wind volume for dust-removal
|
800-2500m3/h
|
|
Environment humidity
|
-100C-400C
|
|
Cutting capacity
|
10-20 bags/h (manual)
|
Features:
1.Simple open- bag structure and easy for operation
2.Tapping device can ensure the material smoothly feed into the next process from the sack
3.Crusher breaks the block during splitting the bag to ensure the next processing work smoothly.
4.Fully automated operation that increase productivity and reduce labor intensity;
5.Sealed split bag that prevent dust emissions, no heat generation, improve the working environment, reduce production costs;
6.Cutting the bag, beating, crushing, magnetic separation integrated design makes structure compact and operation convenient .
7.After unpacking the bag, the material can be conveyed to proper position by the chains conveyor, screw conveyors, pneumatic conveying systems or other specialized conveying equipment.
