Stacker crane automaticall stack the bag, cartons of other packaging materials conveyed by the conveyor according to customer work process requirements into a pile, and convey tie stack materials.
| Driving Mode | AC servo driving |
|---|---|
| Material | Aluminium Alloy |
| Core Components | Engine, Motor |
| OEM | Accept |

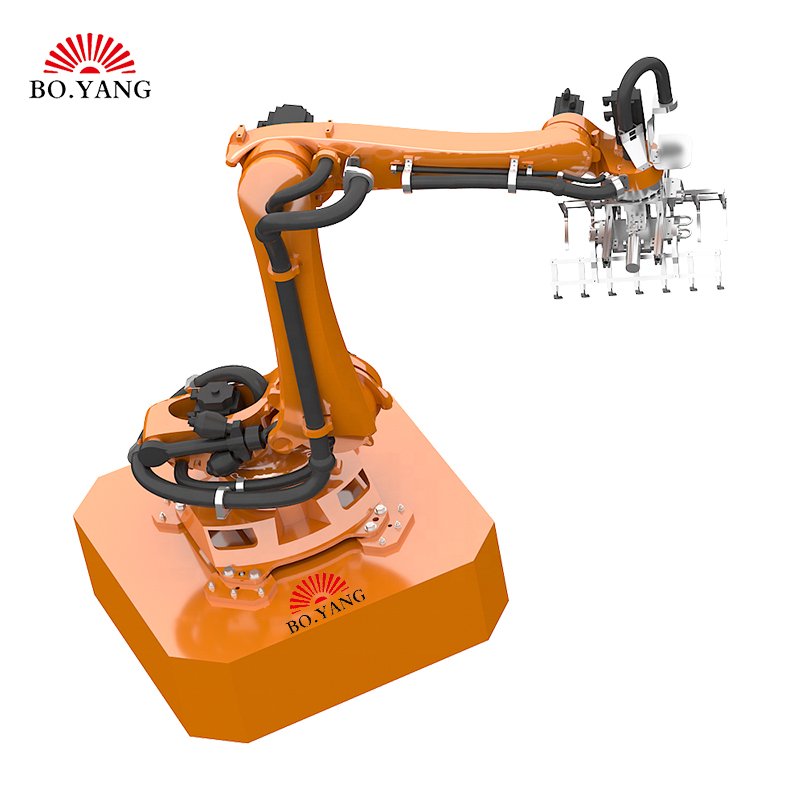

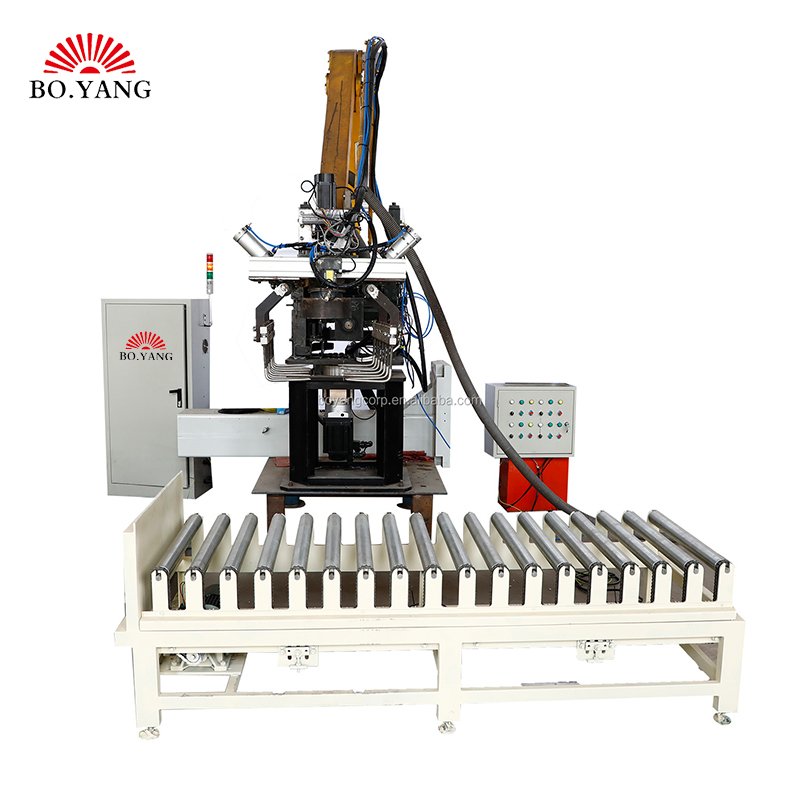

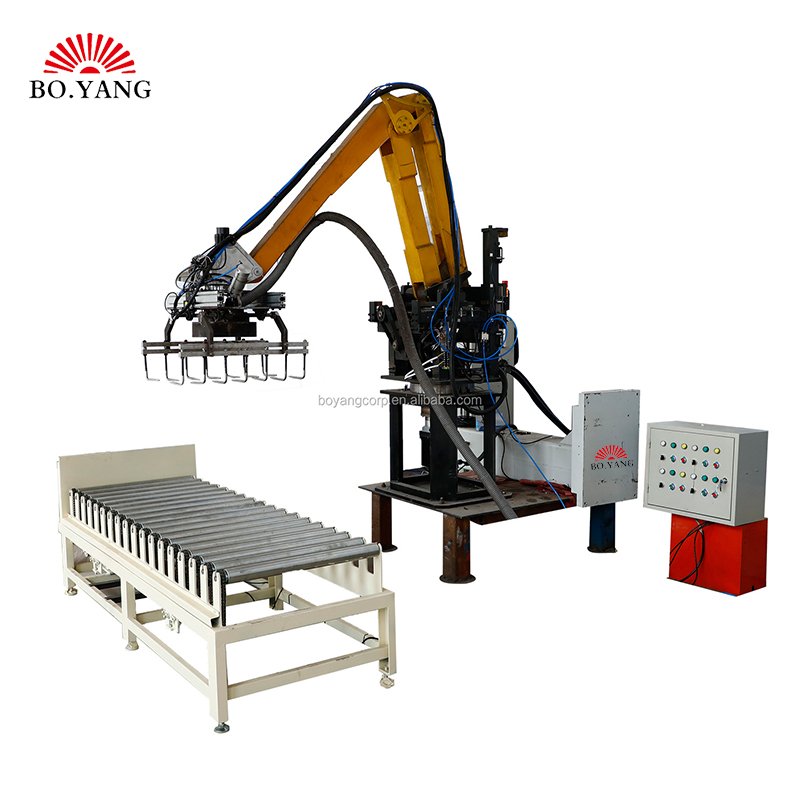

The robot palletizer is a high-tech product integrating machine and electricity. Middle and low position palletizers can meet the production needs of low and medium output. According to the required marshalling method and number of layers, the palletizing of various products such as bags, plastic blocks, boxes, etc. can be completed. The optimized design makes the stack shape tight and neat.
The robot palletizer is mainly composed of a flattening conveyor, a slow-stop conveyor, an indexing conveyor, a pallet warehouse, a pallet conveyor, a marshalling machine, and a palletizing device.Low energy consumption, greatly reducing the customer’s operating costs.
|
Maximum stacking capacity
|
800-1000 bales per hour
|
|
Maximum rotation radius
|
3150mm, cylindrical coordinate type
|
|
Payload
|
100kg
|
|
Maximum load
|
250kg
|
|
Control axis number
|
standard 4 axis
|
|
Installation method
|
Base/floor mounting
|
|
Positioning error
|
± 0.25mm
|
|
Memory
|
more than 30
|
|
Teaching method
|
manual
|
|
Maximum stacking height
|
2.5m
|
|
Protection level
|
totally enclosed structure, ip67
|
|
Gripper specifications
|
two sets of claw grippers
|
|
Base specification
|
1136*850mm carbon steel structure standard base
|
|
Total weight of equipment
|
1650kg
|
|
Power consumption
|
3.2kw
|
