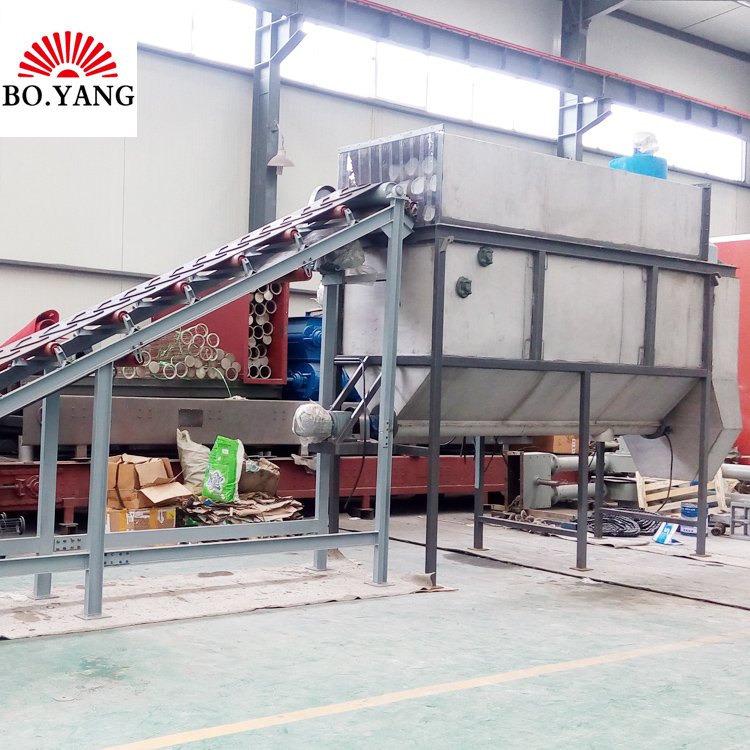

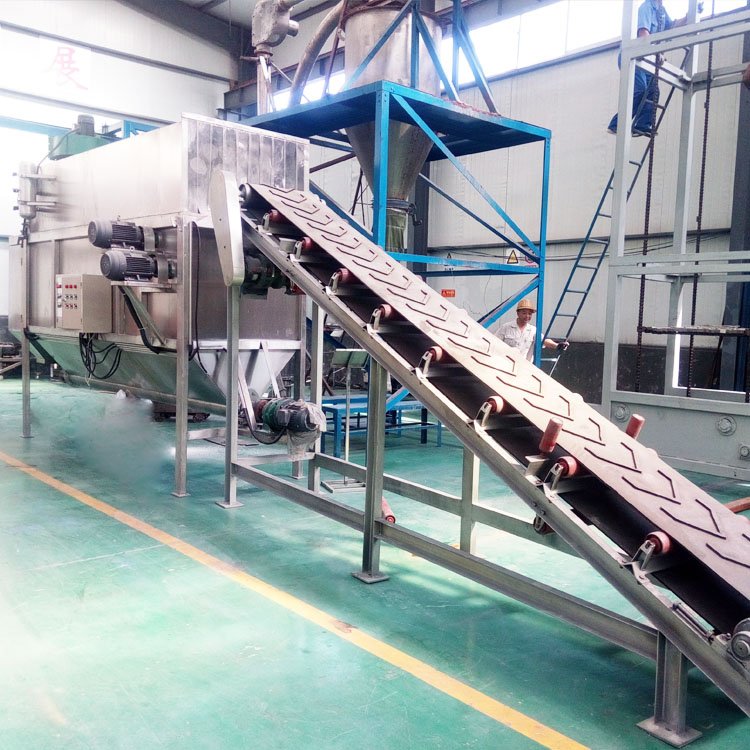

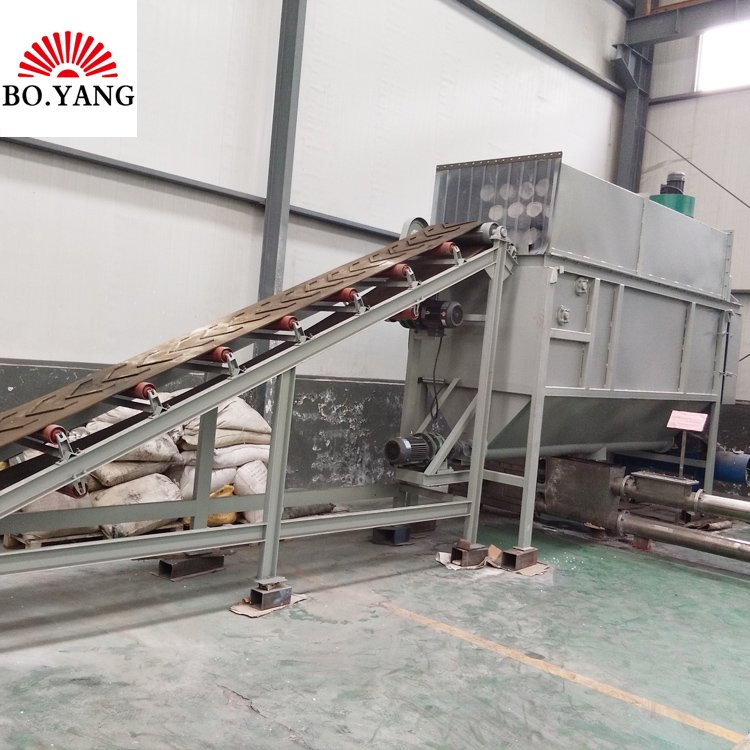

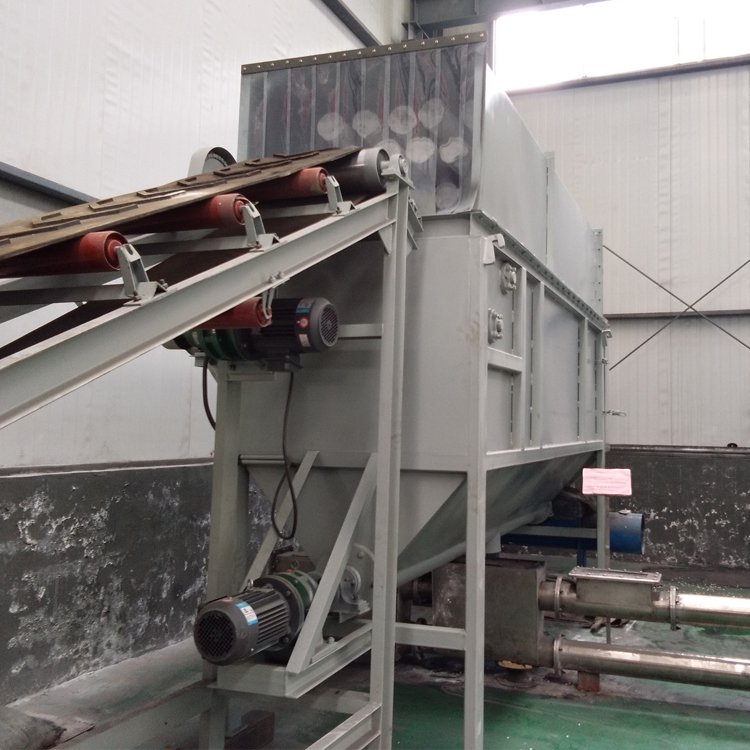

Bags material is conveyed by a belt conveyor to a 45-degree angle on the slide and relies on gravity to slide down along the slide. During the descent, the bag is cut by a fast-moving blade, Slide the material into the drum sieve for sieving. From the roller screen material falling from the screw conveyor output, damaged bags, impurity, agglomerate material was drum sieve out of the body. Dust bag caused by the process of broken bags by the bag filter to capture and shake into the screw conveyor (by the screw conveyor output material can be designed and manufactured by our company dense phase pneumatic conveying device or  pneumatic conveying device, transport to the material silo).

Additional information

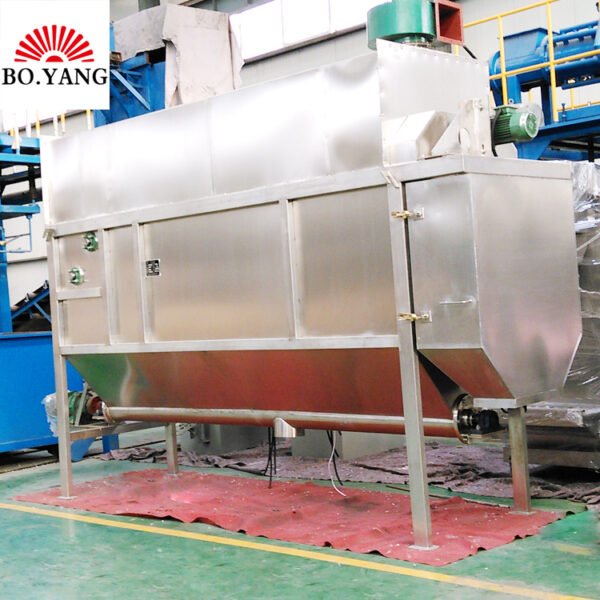

Small bag unloder machine

CDJ bag unloder machine is mainly used in powder and particle material’s bag-opening process for 25kg-50kg .In plastic ,food and other industry ,the machine used in opening additive material/lime powder/PVC powder bag .

Specifications:

  • The overall structure is welded;
  • The construction is firm, compact and beautiful in design;
  • According to the actual needs of users choose a variety of main material:stainless    steel(SS304,SS304L,SS316,316L) etc.
  • Can be associated with dust separation and filtration equipment or with the central vacuum cleaner assembly;
  • The hoppers for collecting material are available in different volumes;
  • The support legs can be height-adjusted;
  • Recyclable waste bags can be configured to handle the compressor;
  • Structure and features:
  • Can be equipped with automatic bag breaking mechanism;

    Applicable scope:

    It is suitable for bagging and unloading bags and granule materials. It is widely used in chemical industry, plastic industry, sewage treatment, infrastructure and other industries. The bags, such as plastic additives, bags of cement and sewage treatment clarifier and other dry powder granular material for automatic bag unloading operations. CDJ-50 small bag deduction bag machine has reliable performance, low power consumption, it is particularly suitable for toxic, flammable, strong corrosion, high dust and personnel should not contact the occasion.
